Lumitec

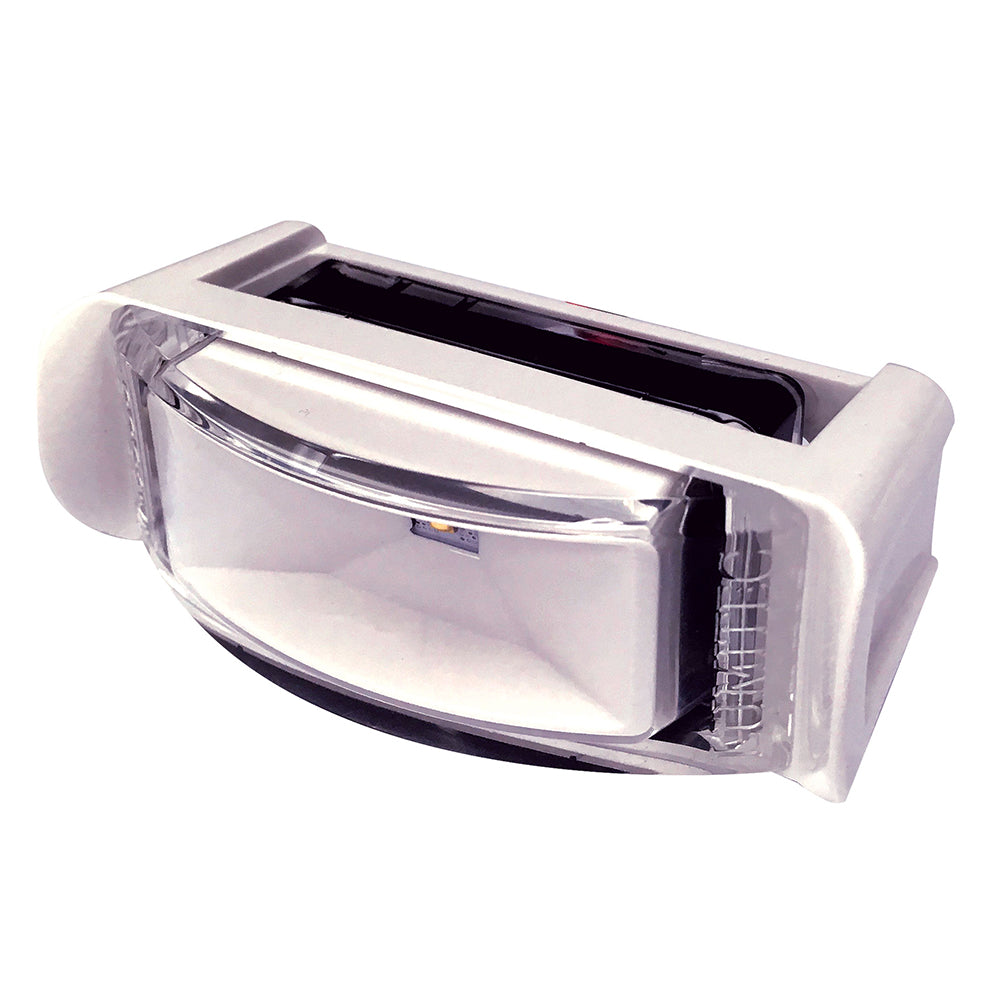

Contour Series Inset Navigation Light - Port Red

Contour’s Drop-in series leverages a single, symmetrical universal pocket profile molded into the hardtop during manufacture. Mating draft angles and part radii have been carefully considered. Low profile, no exposed fasteners, and a clean, modern monochromatic design. Sold as Port, Starboard, or Stern.

Features:

  • Output: Port Red
  • Visibility: USCG2NM
  • Voltage: 10-30V DC
  • 12vDC Amps: 18-26mA
  • 24vDC Amps: 12-15mA
  • Conforms to: ABYC A16

Specifications:

  • Housing: White
  • Lens Color: Red
  • Visible Range (Miles): 2nm
  • Voltage - Input Range (Volts): 12/24v
  • LED: Yes
  • Box Dimensions: 3"H x 3"W x 3"L WT: 0.1 lbs
  • UPC: 089300015747

Brochure (pdf)
