Shakespeare 393 23' Single Side Band Antenna [393]

Shakespeare 393 23' Single Side Band Antenna [393]

Shakespeare

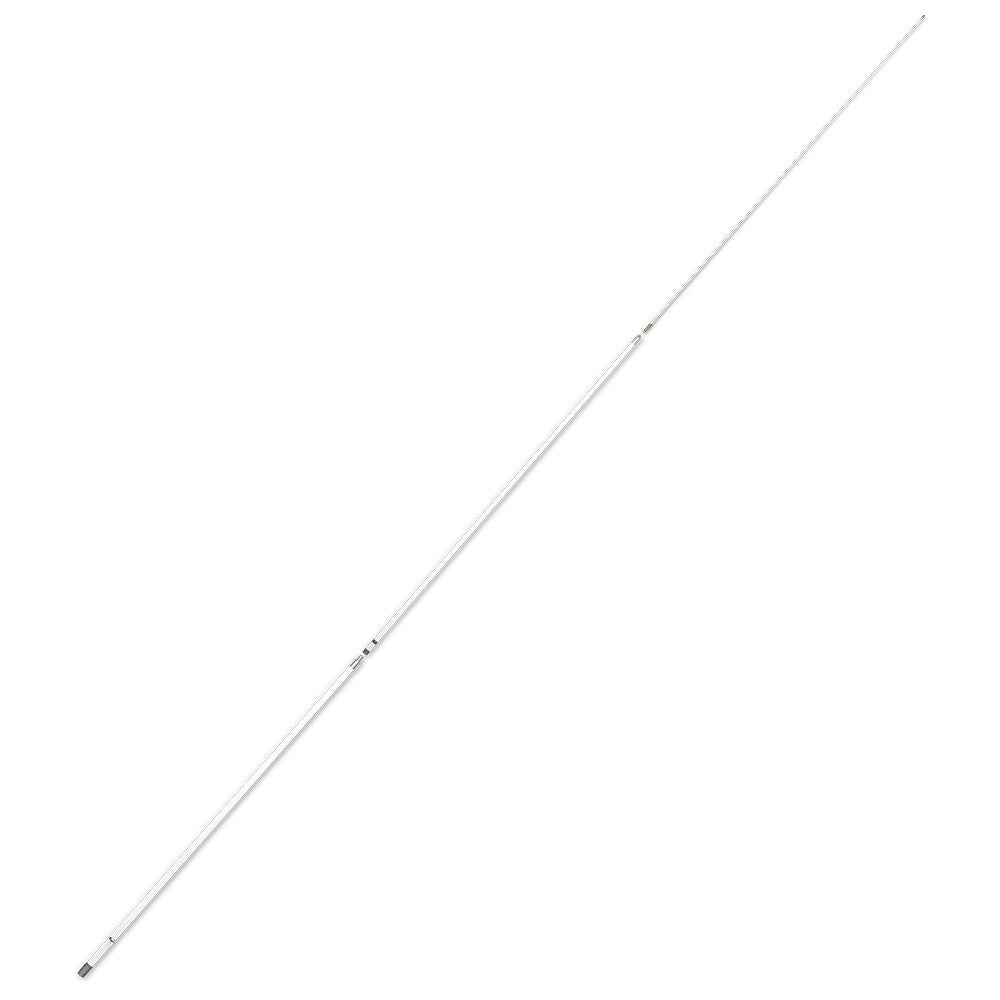

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

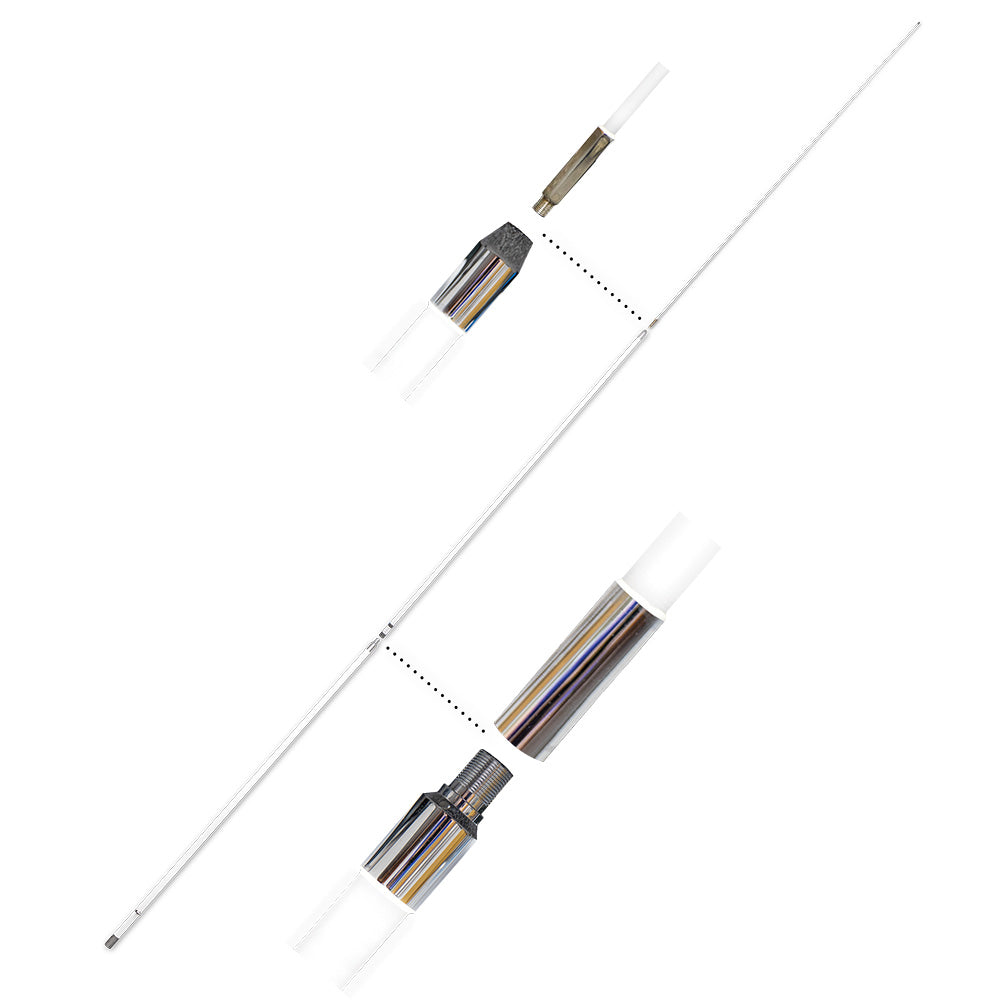

Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
Side feed termination band
Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
Three sections: Base 92"; Center 92"; Tip 92"
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	2-30 MHz HF band with tuner
Bandwidth:	Resonant frequency 10.8 MHz
SWR:	N/A
Impedance:	(Ohms): N/A
Gain:	N/A
Max Input (Watts):	1000
DC Ground:	N/A
Termination:	Side Termination
Height (feet):	23
Polarization:	Vertical
Radiation pattern:	Omni-directional
